| ITEM |
Test Method |

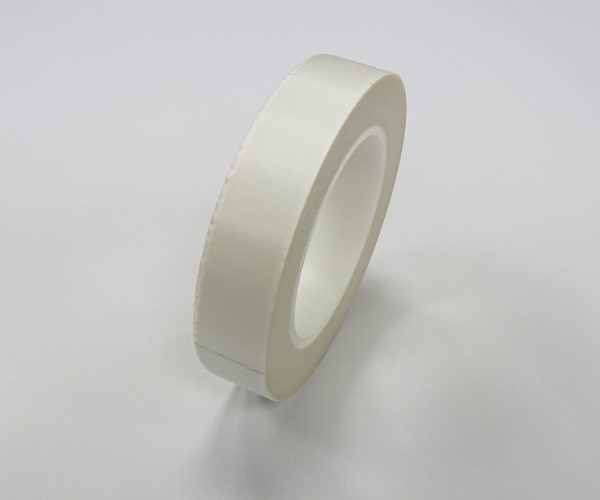

SD-832 |

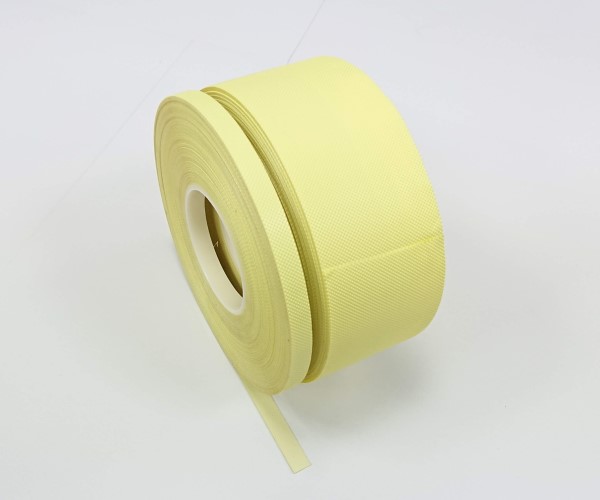

SD-500 |

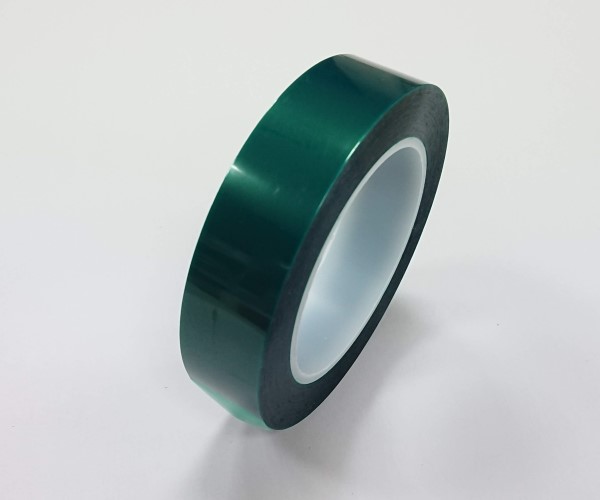

MT-900 |

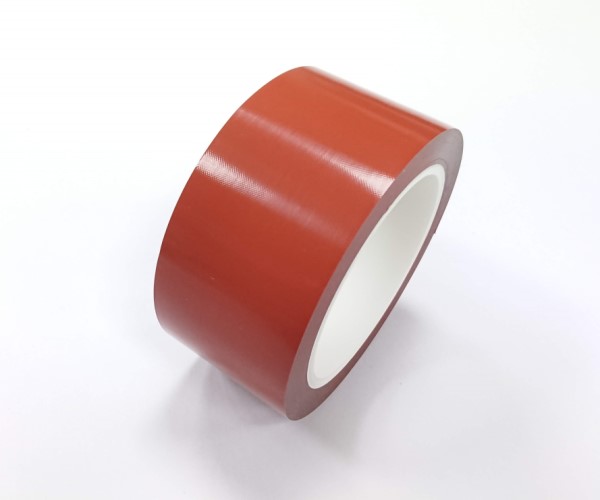

S-1000 |

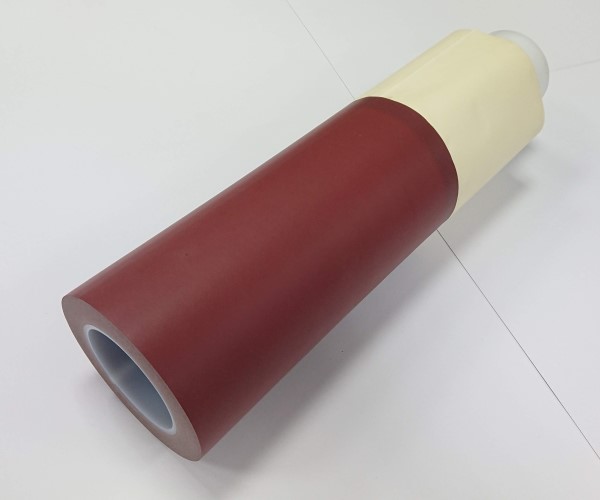

SD-600BT |
| Adhesive Type |
- |
Silicone Adhesive System (PSA) |
| Backing |
- |
Glass Cloth |
Glass Cloth |
PET |
Oriented PTFE |
Filled PTFE |
| Backing Thickness (mm) |
ASTM D1000 |
0.15 |
0.2 |
0.05 |
0.05 |
0.2 |
| Total Thickness (mm) |
ASTM D1000 |
0.18 |
0.28 |
0.09 |
0.1 |
0.25 |
| Color |
- |
Amber |
White |
Green |
Orange |
Rose |
| Adhesion to Steel (g/25mm) |
ASTM D1000 |
800 |
900 |
900 |
850 |
750 |
| Tensile Strength (kg/25mm) |
ASTM D1000 |
45 |
35 |
20 |
12 |
10 |
| Elongation (%) |
ASTM D1000 |
15 |
15 |
100 |
100 |
220 |
| Dielectric Strength (Kv) |
ASTM D149 |
3 |
7 |
5 |
8 |
- |
| Temperature Range (°C/°F) |
- |
260℃ |
260℃ |
200℃ |
260℃ |
260℃ |
| Tape of Width (mm) |
- |
1000 |
500 |
1000 |
300 |
300 |
| Tape of Length (M) |
- |
33 |
33 |
55 |
33 |
33 |
